Chroma Filter 49002 - ET - EGFP (FITC/Cy2)
Chroma’s 49000 series of single band sets features our highest throughput sputter coatings (ET) which achieve the highest transmission levels for interference filters. These filters have very steep transitions from peak transmission to high optical density to best exploit the spectral properties of modern fluorochromes with short Stokes shifts. This is because steep transitions allow for very little spectral separation between excitation and emission bands.
These filters offer the greatest hardness and durability against environmental factors such as high heat and humidity, and are covered by Chroma’s lifetime warranty. All ET filters sets provide zero-pixel-shift image registration* between filter sets, at no additional cost.
*It is important to note that filters are only one factor in achieving perfect image registration in imaging systems. All other components and devices must also be in register.
Chroma Filter - 49002
ET - EGFP (FITC/Cy2)
Unsure of which cube holder you need? Click here for help

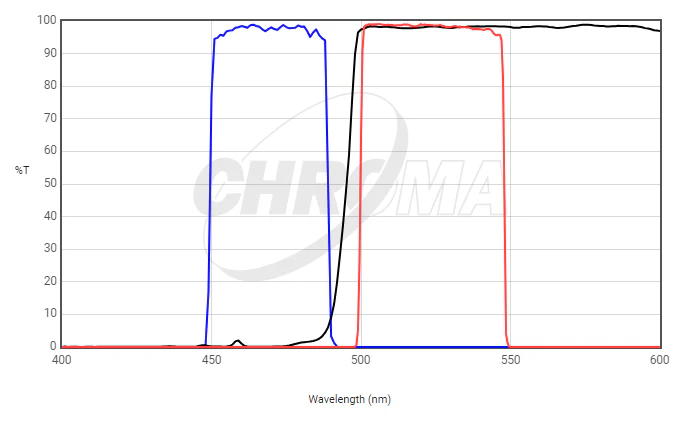

| PLOT | FILTERS | TYPE | %T-OD | AOI | DATA | |
|---|---|---|---|---|---|---|
| ET470/40x | EX | 97.28 T at 472nm | 0° | ASCII | ||
| T495lpxr | BS | 0.14 T at 472nm | 45° | ASCII | ||
| ET525/50m | EM | 0.00 T at 472nm | 0° | ASCII |
Microscope Marketplace's most popular filter holders
Olympus Holder# 91018 BX2 (BX40, BX50, BX60, BX41, BX51, BX61, IX51, IX71, IX81)
Olympus Holder# 91038 BX3 (BX43, BX53, BX63, IX73, IX83)
Nikon Holder# 91001 (E400, E600, E800, TE200, TE300)
Nikon Holder# 91020 (50i, 55i, 80i, 90i, TE2000, Ti, LV100, FN1
Zeiss Holder# 91029 (Axio Observer, Axio Imager, Axio Imager 2, Axioskop 40FL, Axioskop A, Axioskop, Axiovert 200, Axiovert 40FL, Axiovert A)
Leica Holder# 91034 K Cube (DM2000, DM2500, DM3000, DM4000, DM5000, DM5500, DM6000, DMI3000, DMI4000, DMI6000)
Original: $1,267.00
-65%$1,267.00
$443.45Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Chroma’s 49000 series of single band sets features our highest throughput sputter coatings (ET) which achieve the highest transmission levels for interference filters. These filters have very steep transitions from peak transmission to high optical density to best exploit the spectral properties of modern fluorochromes with short Stokes shifts. This is because steep transitions allow for very little spectral separation between excitation and emission bands.
These filters offer the greatest hardness and durability against environmental factors such as high heat and humidity, and are covered by Chroma’s lifetime warranty. All ET filters sets provide zero-pixel-shift image registration* between filter sets, at no additional cost.
*It is important to note that filters are only one factor in achieving perfect image registration in imaging systems. All other components and devices must also be in register.
Chroma Filter - 49002
ET - EGFP (FITC/Cy2)
Unsure of which cube holder you need? Click here for help
| PLOT | FILTERS | TYPE | %T-OD | AOI | DATA | |
|---|---|---|---|---|---|---|
| ET470/40x | EX | 97.28 T at 472nm | 0° | ASCII | ||
| T495lpxr | BS | 0.14 T at 472nm | 45° | ASCII | ||
| ET525/50m | EM | 0.00 T at 472nm | 0° | ASCII |
Microscope Marketplace's most popular filter holders
Olympus Holder# 91018 BX2 (BX40, BX50, BX60, BX41, BX51, BX61, IX51, IX71, IX81)
Olympus Holder# 91038 BX3 (BX43, BX53, BX63, IX73, IX83)
Nikon Holder# 91001 (E400, E600, E800, TE200, TE300)
Nikon Holder# 91020 (50i, 55i, 80i, 90i, TE2000, Ti, LV100, FN1
Zeiss Holder# 91029 (Axio Observer, Axio Imager, Axio Imager 2, Axioskop 40FL, Axioskop A, Axioskop, Axiovert 200, Axiovert 40FL, Axiovert A)
Leica Holder# 91034 K Cube (DM2000, DM2500, DM3000, DM4000, DM5000, DM5500, DM6000, DMI3000, DMI4000, DMI6000)
