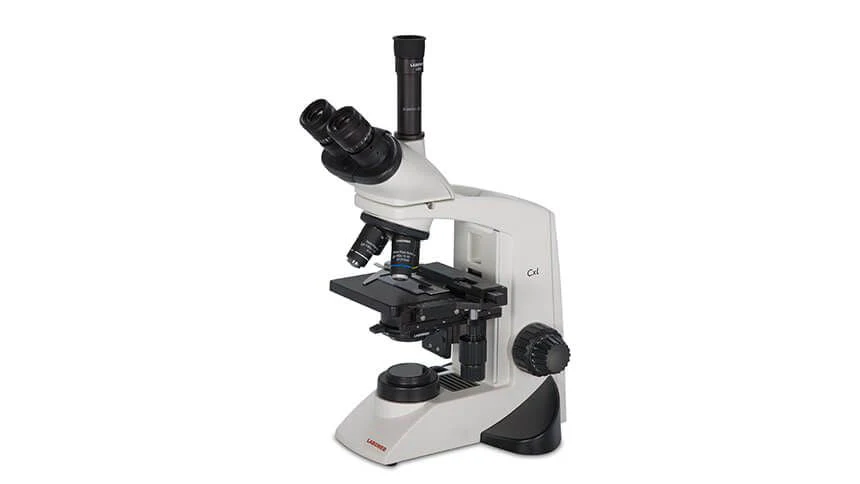

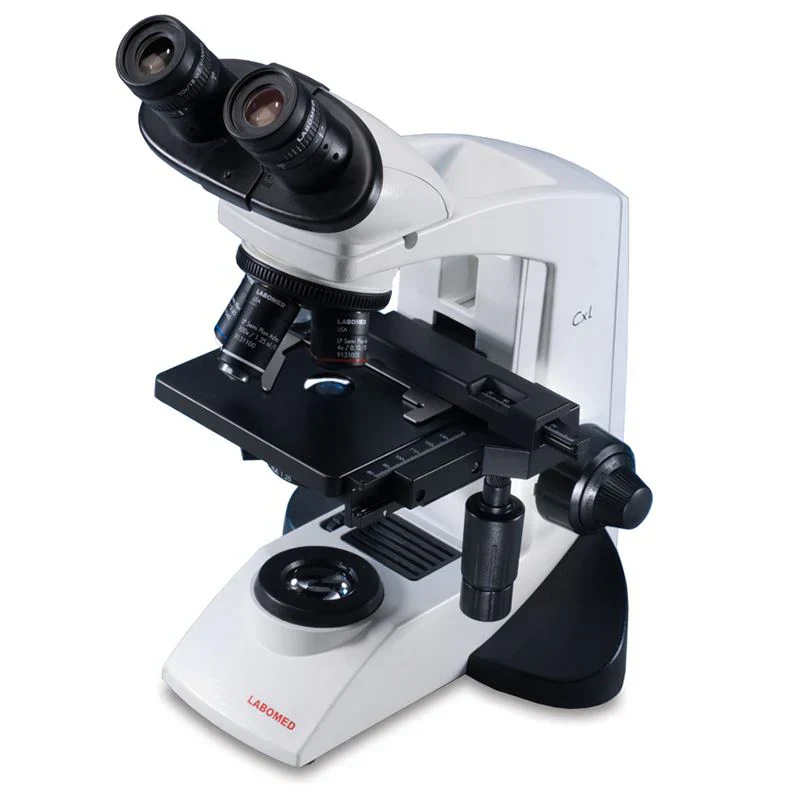

Labomed CxL Microscope with Rechargeable LED

Designed for both classroom and laboratory environments, the CxL reflects a sleek design composed of a durable aluminum stand, high throughput glass and optical coatings, and brass gears, all of which position the CxL to withstand the most demanding of user environments. And with lead-free optics and paints, the CxL is a truly eco friendly solution.



This is an EXCELLENT microscope for KOH preparation in Dermatology laboratories



• Objective

  LP series DIN Semi-Plan Achromatic objectives 4x, 10x, 40x (spring loaded), 100x (spring loaded, oil), antifungal

• Nosepiece

  Quadruple nosepiece turret (Ball bearing type) with rubber grip

• Viewing Body

  45° inclined, 360° captive rotation, Interpupillary distance 54 - 74mm

• Electronics

  Universal input 100V- 240V AC, 50/60Hz, built-in voltage stabilizer Dimensions (mm) Labomed CxL Microscope Line Drawing

• Stand

  Single mold aluminum die-cast with ergonomic handrests for enhanced comfort and stability.

• Eyepiece

  Widefield 10x/18mm focusable eyepieces with foldable eye guard, lockable, antifungal coating

• Condenser

  Sub stage Abbe condenser NA 1.25 with aspheric lens. Iris diaphragm with snap-in blue filter. Rack and pinion movements on metal guides

• Mechanical Stage

  Rectangular stage 135 x 124mm, X/Y travel range 76mm x 50mm. Low drive movement controls, single specimen holder

• Focusing

  Co-axial coarse and fine focusing on ball drive system for smooth operation. BRASS rack and pinion stage drive. Fine drive movement 0.3mm/rotation

• Illumination

  LED or Halogen 6V-20W illumination with variable illumination control. Up to 100,000 hours of LED life and 2,000 hours of Halogen lamp life

• Accessories (Optional)

  • Pointers & Micrometer Reticules Phase, Polarizing, and Dark Field Kits
  • Auxiliary Objectives and Eyepieces
  • Cord Hanger Kit
  • Digital Cameras and Adapters
  • Soft Carrying Case
