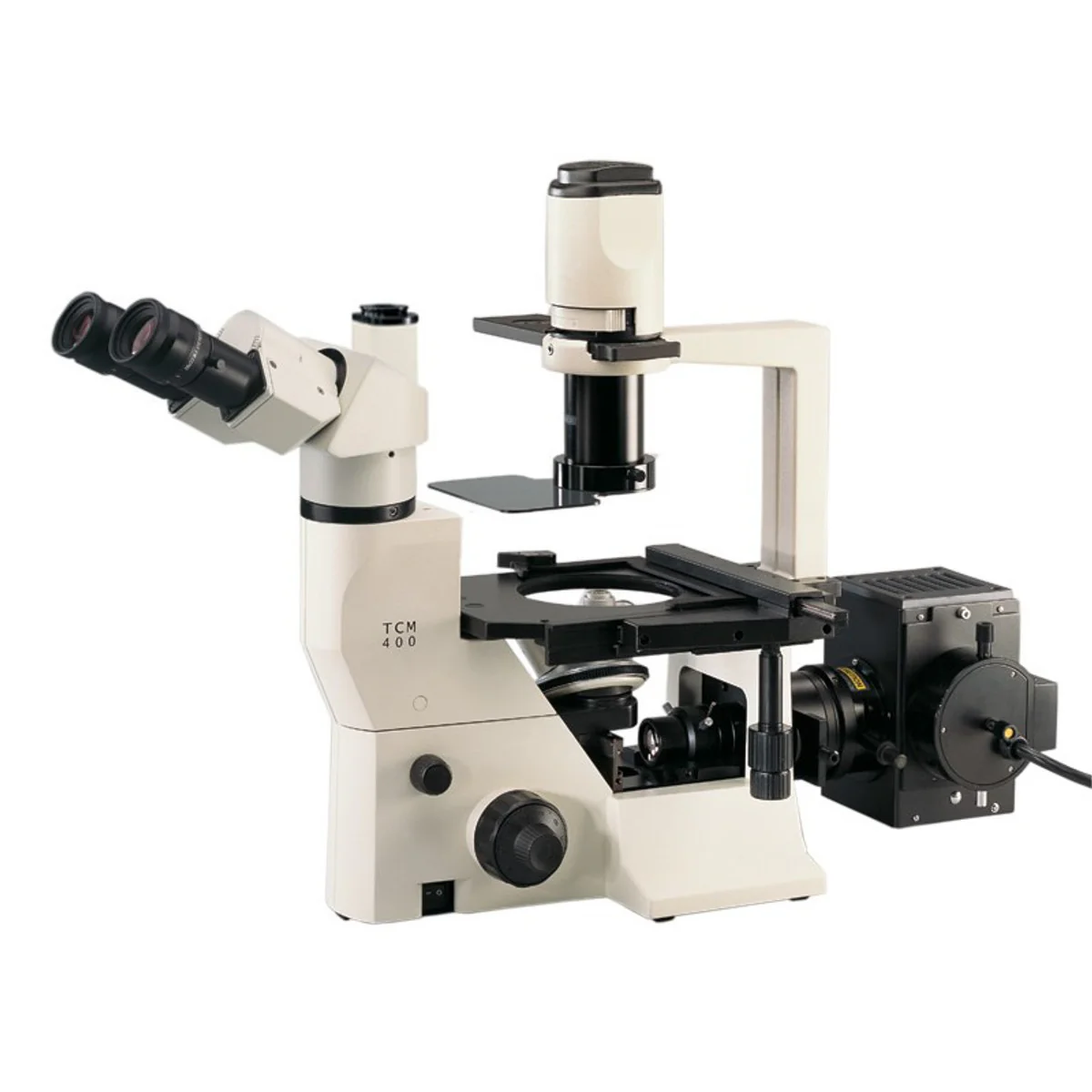

Labomed TCM400 Trinocular Inverted Phase Microscope with LED Fluorescence Attachment
*** Pictured Mechanical Stage Not Included ***
The Labomed TCM400 Microscope is a compact research microscope with fast performance features. The microscope is designed for a wide range of research and bio-sciences applications. The observation and analysis of the cell cultures and In Vitro fertilization (IVF) studies are made easy through wide range of accessories.
Equipped with LW series infinity corrected optics providing images with needle sharp contrast and definition. The extra long working distance objectives and super wide field eyepieces offer ease of operation. teamed with accessories such as Phase Contrast, Fluorescence Technique System, Heated Stage and a variety of viewing bodies, the TCM400 delivers high end performance at an unbelievable price.
With its ergonomics, modularity and unmatched optical performance, TCM400 is an inverted microscope in a class of its own. There is a five year manufactures warranty included.
Product Specifications
| Stand | Ergonomically designed sturdy stand (aluminum die-cast) |
| Viewing Body | Trinocular 30° inclined, IPD 52-75mm |
| Eyepiece | Widefield 10x/22mm eyepieces with rubber eyeguards, antifungal coatings |
| Nosepiece | Quadruple reverse angle turret (Ball bearing type) with rubber grip |
| Objectives | LW series Long working distance DIN Phase Plan Achromatic objectives 4x, 10x and 20x, antifungal coatings |
| Stage | Fixed plain stage 160mm x 240mm |
| Condenser | Long working distance Condenser NA 0.30, suitable for Phase contrast/BF with Phase contrast slider and telescope, Green and Blue filters |
| Focusing | Coaxial coarse and fine focusing mechanism. Fine focus graduation 2.0μm |
| Illumination | Transmitted Illumination system 6v 30w Halogen with intensity control. Up to 500 hours of Halogen lamp life. |
| Fluorescence Attachment | Triple Filter LED Fluorescence attachment with UV (Excite: 350nm/ Dichroic: 400nm/ Barrier: 460nm), Blue (Excite: 475nm/ Dichroic: 500nm/ Barrier: 535nm) and Green (Excite : 535nm/ Dichroic: 560nm/ Barrier: 595nm), 100-240V AC universal power supply. |
| Operating Environment | Indoor use Altitude: Max 2000m Ambient temperature: 5° C to 40° C (41° F to 104° F) Maximum relative humidity: 80% for temperatures up to 31°C (88° F) Supply voltage: fluctuations not to exceed ± 10 % of nominal voltage |
| Electronics | Universal power supply (110V-240V) with built-in voltage stabilizer |
| Warranty | 5-year manufacturer warranty. |
| Certification | UL, CE, ISO 9001:2000 and ISO 13485:2003 |
| Orange colored Plastic shield to safeguard the Operator from UV light. | |
