Mitutoyo 100x M Plan APO High Resolution Objective
Mitutoyo 100x M Plan APO High Resolution Objective - 378-815-4. The apochromatic optical design provides a flat, chromatic-aberration-free image for true-colour viewing, making this objective an ideal choice for metallurgical applications. The high N.A. of this objective provides high resolution.
| SPECIFICATIONS | |
|---|---|
| Type: | Infinity Corrected Brightfield |
| Wavelength: | Visible |
| Magnification: | 100x |
| N.A.: | 0.90 |

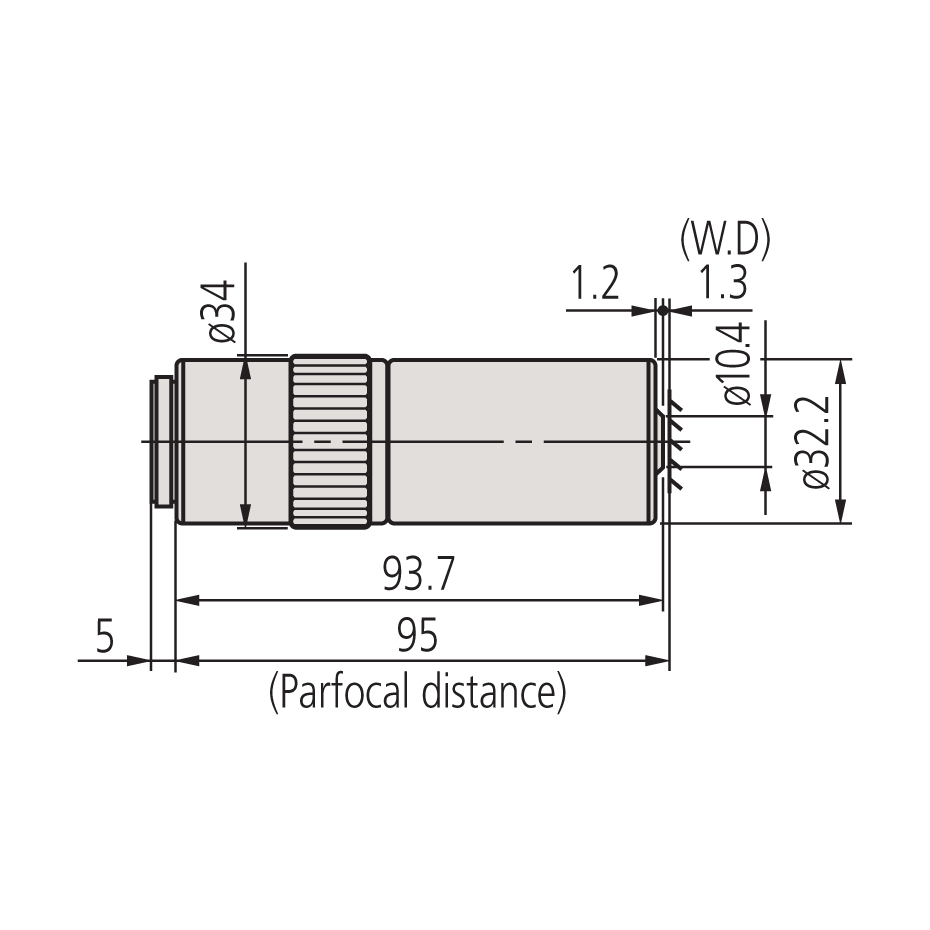

| Working Distance: | 1.3mm |
| Focal Length: | 2mm |
| Resolving Power: | 0.3µm |
| Focal Depth: |
0.34µm |
| Field of View with Ø24 Eyepiece | Ø0.24 |
| Real Field of View with 1/2" Chip Camera | 0.05 x 0.06 |
| Thread Size: | M26 |
| Part Number: | 378-815-4 |
