Schott VisiLED Brightfield Ringlight 81mm | 400.265
Schott VisiLED Brightfield Ringlight 81mm | 400.265

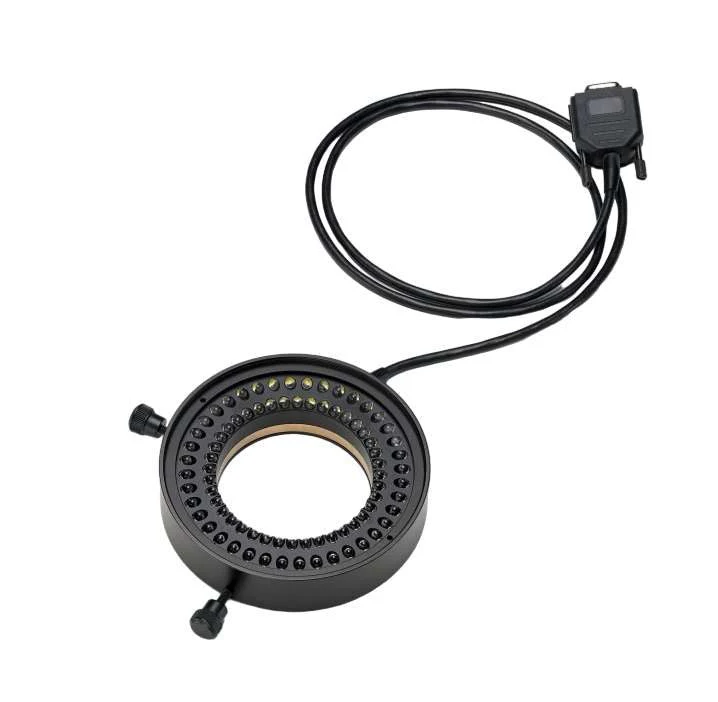

SCHOTT 400.265 VisiLED Brightfield Ringlight (S80-65) 81 mm
The Schott VisiLED product line is a group of professional LED illumination components designed for the most demanding applications in Stereo Microscopy.
VisiLED Brightfield Ringlights provide incident (Top Down) Illumination. The 400.265 Brightfield Ringlight S80-65 has an 81 mm ID to fit significant diameter research grade stereo microscope objectives like those found on Zeiss Stereo Discovery and Leica M Series.
The Schott VisiLED Ringlights easily attach to microscope objectives using a thumb screw and clamp ring.
Features:
- Homogeneous illumination.
- Compact & efficient; no fiber optic light box or light guides needed.
- Long operating life: typically 50,000
- Segments controllable in different preset modes for optimum contrasting
- Illumination Method: Brightfield
- 80 Ultra high brightness Power LEDs in 8 segments
- Color Temperature: 5600K
- Working Distance: 35 mm - 100 mm
- Max. Illuminance: 130 kLx (at 75 mm WD)
- Dimensions: outer Ø: 130 mm/ inner Ø: 81 mm/ height: 25 mm
Brochure
Original: $1,270.00
-65%$1,270.00
$444.50Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Schott VisiLED Brightfield Ringlight 81mm | 400.265
SCHOTT 400.265 VisiLED Brightfield Ringlight (S80-65) 81 mm
The Schott VisiLED product line is a group of professional LED illumination components designed for the most demanding applications in Stereo Microscopy.
VisiLED Brightfield Ringlights provide incident (Top Down) Illumination. The 400.265 Brightfield Ringlight S80-65 has an 81 mm ID to fit significant diameter research grade stereo microscope objectives like those found on Zeiss Stereo Discovery and Leica M Series.
The Schott VisiLED Ringlights easily attach to microscope objectives using a thumb screw and clamp ring.
Features:
- Homogeneous illumination.
- Compact & efficient; no fiber optic light box or light guides needed.
- Long operating life: typically 50,000
- Segments controllable in different preset modes for optimum contrasting
- Illumination Method: Brightfield
- 80 Ultra high brightness Power LEDs in 8 segments
- Color Temperature: 5600K
- Working Distance: 35 mm - 100 mm
- Max. Illuminance: 130 kLx (at 75 mm WD)
- Dimensions: outer Ø: 130 mm/ inner Ø: 81 mm/ height: 25 mm
