Scilogex Chemical Resistant Diaphragm Vacuum Pump

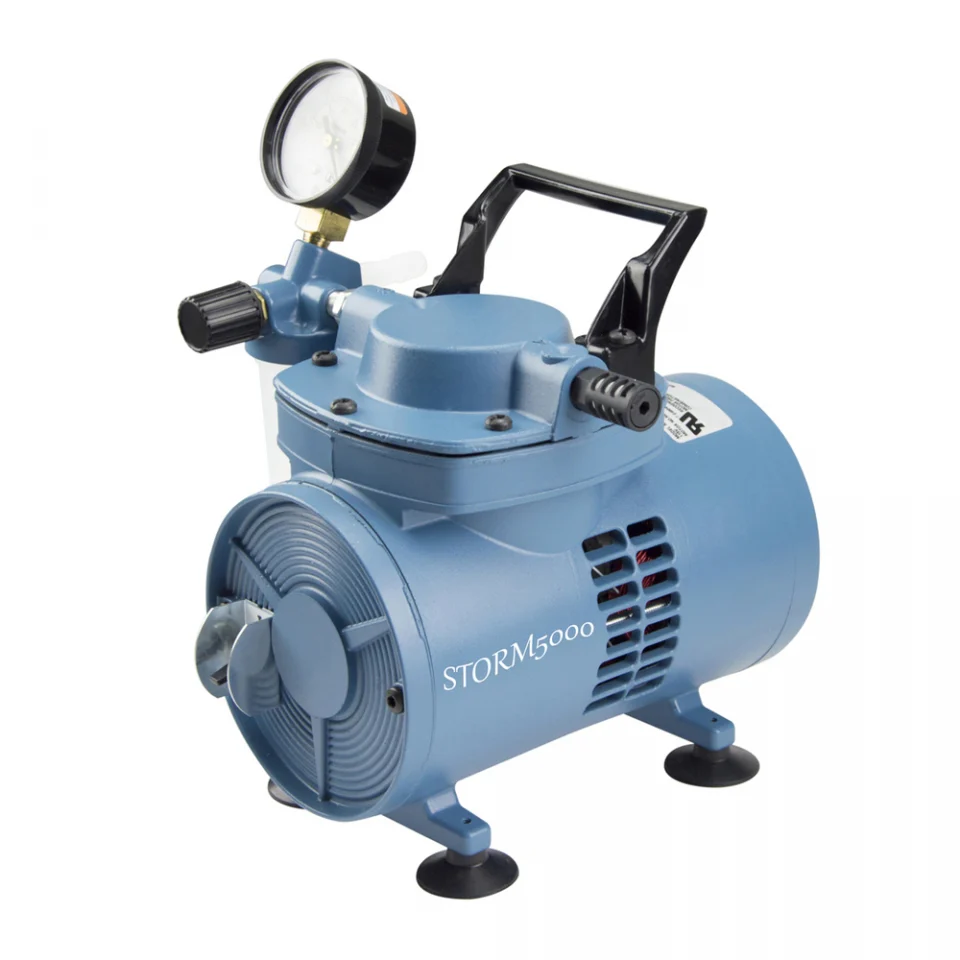

SCILOGEX STORM5000C Chemical Resistant Diaphragm Vacuum Pump Model # STM5000C

The Scilogex STORM5000 and STORM5000C diaphragm vacuum pumps are durable and chemical resistant. All contact surfaces are PTFE coated. STORM5000.STORM5000C vacuum pumps come with a liquid inlet trap and vacuum regulator making it a perfect choice for vacuum filtration, desiccation, and other mid-range vacuum applications. They are also bleach resistant, allowing them to be used with cell culture decontamination protocols.

The STORM5000 has free air displacement at 115V, 60Hz and a maximum vacuum of 24"Hg (200 mbar). The STORM5000C has free air displacement at 230V, 50Hz and a maximum vacuum of 24"Hg (200 mbar). They are recommended for operations utilizing organic/aqueous solvents and/or light acid/base solutions. They are recommended for operations utilizing organic/aqueous solvents and/or light acid/base solutions and can also be used to pressurize up to 18 PSIG.

The STORM5000 and STORM5000C are resistant to bleach and acetone vapors allowing it to be used with cell culture decontamination protocols.

• Made in the USA
• PTFE contact surfaces
• Bleach safe for cell culture bio decontamination protocols
• Vacuum to 24" Hg
• Flow of 37 lpm
• Vacuum regulator (Vacuum can be adjusted from zero up to its maximum vacuum)
• Exhaust muffler
• Compact, portable & quiet
• Diaphragm membrane rated for 15,000 hours use
• Optional pressure regulator accessory kit available
• 1 year warranty

Applications

• Vacuum filtration
• Solid phase extraction
• Desiccation
• Microbiology
• Replace water aspirator
• Aspiration
• Degassing
• Vacuum drying
• Fume suction

Specifications:

Free Air Displacement @ 115V, 60Hz	CFM (L/min) @ 60Hz 1.3 (37), CFM (L/min) @ 50Hz 1.1 (31)
Maximum Vacuum, in. Hg	24"
Ultimate Pressure, Torr (mbar)	150 (200)
Maximum continuous Pressure, PSIG	1`8
Tubing Needed, I.D., inches	1/4"
Weight, lbs (kg)	10.2 (4.6)
Motor H.P.	1/5
Motor Voltage, Frequency & Watts	160W / 230V, 50Hz
Motor Amps	230V @ 1.75
Overall Pump Dimensions L x W x H inches (cm)	8.75 x 5.0 x 8.75 (22.2 x 12.7 x 22.2)
Shipping Weight, pounds (kg)	8.6 (3.9)
