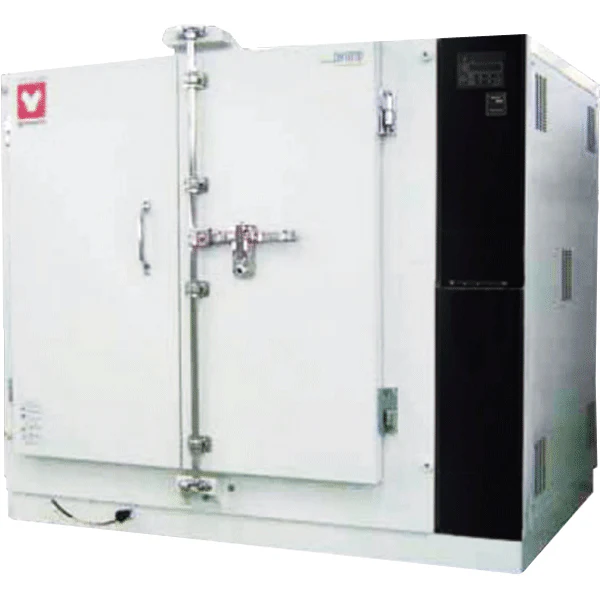

Yamato DH-1032 Fine Oven 1000L (220V 3 Phase)
Yamato DH-1032 Fine Oven, 1000L 220V 3 Phase 22A 50/60Hz
Large capacity high performance fine ovens designed to support high throughput with high accuracy temperature control and exhaust damper
Operation and functions
- Allows precision maintenance of large parts at a constant temperature
- Quick exhaust and cooling in the unit with the exhaust damper
- Interactive key entry on the control panel with a green LED digital display for easy settings
- Features power consumption /CO₂ emissions monitoring
- Increased safety and self diagnostic functions
Specifications
| System | Forced air circulation and ventilation |
| Operating Temp. Range | Room temp. +15°C~200°C |
| Temperature Fluctuation | ±0.5°C (at 200°C) |
| Temperature Slope | 15°C (at 200°C) |
| Temperature Controller | PID Z control |
| Temp Setting Method | Digital setting with ▲▼ keys |
| Timer | 0 min~99 hrs 59 min (Resolution: 1 minute or 1 hour) |
| Operation Function | Fixed temperature operation, Program operation (maximum 99 steps, up to 99 patterns, repeat operation function) Duration/time select timer operation function (fixed temperature operation, auto start/auto stop/quick auto stop, program operation auto start) |
| Additional Functions | Accumulated Power on and Operation Time (up to 65,535 hours); Calendar Time (24 hours); Calibration Offset; Monitor Display of Accumulated Power Consumption, Total CO₂ Emission, and Heater operating Output; Power Recovery Mode; User Settings Save and Restore Function; Fan Speed Setting Function |
| Sensor | K-thermocouple (double sensor) |
| Heater | Stainless steel pipe heater with a fan |
| Fan Motor | Stainless steel axial flow fan (capacitor motor: 20W), Two motors used for Model 1032 |
| Cable Port | I.D. φ30mm (rear) |
| Heat Insulator | Glass wool |
| Other Additional Structure | Exhaust damper (manual operation) |
| Safety Device | Self-diagnostic functions (temp. sensor error, heater disconnection, SSR short-circuit, automatic overheat prevention), door switch, fan failure detection, key lock, independent overheat protection, electric leakage breaker with over current protection |
| Power Supply 50/60 Hz | 3 phase AC220V 17A (no plug, round terminal) |
| Internal Dimensions WxDxH | 1000 x 1000 x 1000 mm |
| External Dimensions WxDxH | 1700 x 1215 x 1530 mm |
| Internal Capacity | 1,000L |
| Weight | ~450kg |
This product ships directly from Yamato, ensuring fast delivery, proper handling, and factory quality. When you purchase Yamato, you’re backed by a trusted name in laboratory equipment—known for precision, reliability, and dependable support. Shop with confidence knowing your order is fulfilled directly by the manufacturer.
$19,596.75
