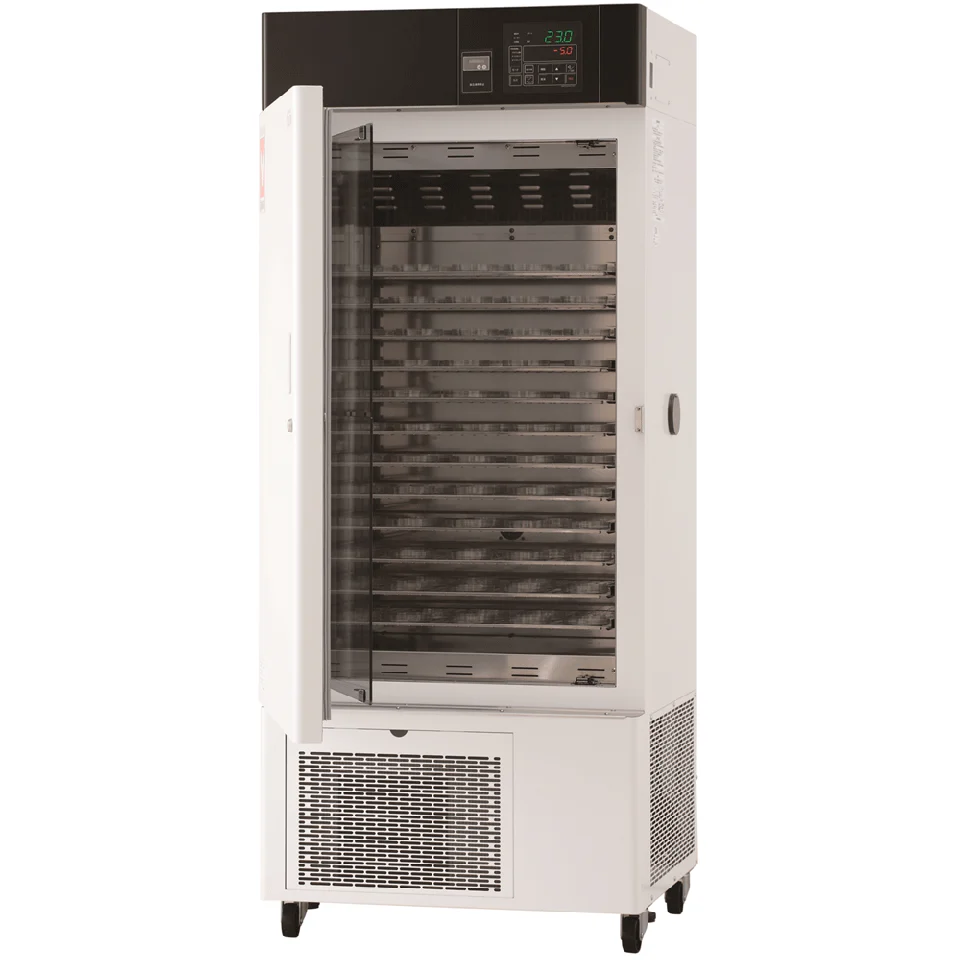

Yamato INE-800 Refrigerated Forced Convection Incubator (115V)

Yamato INE-800 Refrigerated Forced Convection Eco Incubator (115V)

Programmable refrigerated forced convection eco incubator, 286L

Operation and functions

• Upgraded inverter control improved refrigeration efficiency, reduced frost significantly and minimized wasted power during refrigeration
• 44% power savings compared to previous models
• Controller upgraded for easier viewing and operability
• Temperature distribution accuracy improved for better incubation
• Standard equipped with program operation, auto-stop, auto-start, quick auto stop, timer, calibration off-set, memory, and electricity & CO₂ emission monitor
• Designed with Analog Output (4-20mA) and External Communication Port (RS485)

Specifications

MODEL	INE800
System	Forced convection
Operating Temperature Range	0~+60°C
Setting Temperature Range	-5~+65°C
Temperature Adjustment Accuracy	±0.2°C (at 37°C during continuous operation), ±0.5°C (at 37°C cycle operation)
Temperature Fluctuation	±0.3°C (at 37°C during continuous operation), ±1.0°C (at 37°C cycle operation)
Temp. Distribution Accuracy	±0.5°C (at 37°C during continuous operation)
Temperature Gradient	2.0°C (at 37°C during continuous operation)
Max. Temperature Reaching Time	20~60°C 35min.
Min. Temperature Reaching Time	20~0°C 50min.
Cooling Mechanism	Continuous operation, Cycle operation, Cooling-stop operation
Interior	Stainless steel
Exterior	Chromate-free electrogalvanized steel plate Baked chemical resistant finish
Heat Insulator	Styrene foam (non-freon)
Freezer	200W Rotary Unit
Cooling Medium	R134a 350g
Operation Range Of Freezer	Below 40°C
Defrosting Mechanism	Hot Gas Bypass Method, Manual (random) Defrost / Auto (time) Defrost
Blower Fan	DC Axial flow fan 4-Step, Equipped with Error Signal when stopped
Heater	Iron-chrome wire heater : 750W
Sensor	Double sensor: Platinum resistance temperature detector: Pt100Ω (temperature controller), K-thermocouple (overheat prevention device)
Cable Port	I.D.: 50 mm (right side of main unit)
Temperature Controller	PID control by microprocesser
Temperature Display	Setting Temp. Display : 5-digit orange LED digital display / Actual Temp. Display : 4-digit green LED digital display
Timer / Timer Resolution	0~99hr. 59min. / 1min.
Operation Function	Fixed temperature, Auto start, Auto stop, Quick auto stop, Program (99 steps, 99 patterns)
Additional Functions	Timer, Calibration off-set, Electricity & CO₂ Emission Monitor, Voltage Recovery Optional, User Setting saving/readout, Calendar timer (24 hours)
Safety Device	Self diagnostic function (temp. sensor error, heater disconnection, SSR short-circuit, main relay error, automatic overheat prevention), Key lock, Overcurrent electric leakage breaker, Overheat prevention device, Fan malfunction detector, Cooling high-pressure detector, Inverter malfunction detector
External Dimensions WxDxH	710 x 645 x 1730 mm
Internal Dimensions WxDxH	600 x 477 x 1000 (effective 800) mm
Internal Capacity	286L
Shelf Load Capacity	15 kg/pc.
Shelf Rest Step Number / Pitch	23 steps / 30mm
Power Supply (50/60 Hz)	AC115V 8.7A (with plug)
Weight	~135kg
Included Accessories	Stainless steel punched metal 5 pcs. shelf / 10 pcs. brackets, 2 keys, silicon stopper for cable hole 1 pc



This product ships directly from Yamato, ensuring fast delivery, proper handling, and factory quality. When you purchase Yamato, you’re backed by a trusted name in laboratory equipment—known for precision, reliability, and dependable support. Shop with confidence knowing your order is fulfilled directly by the manufacturer.
