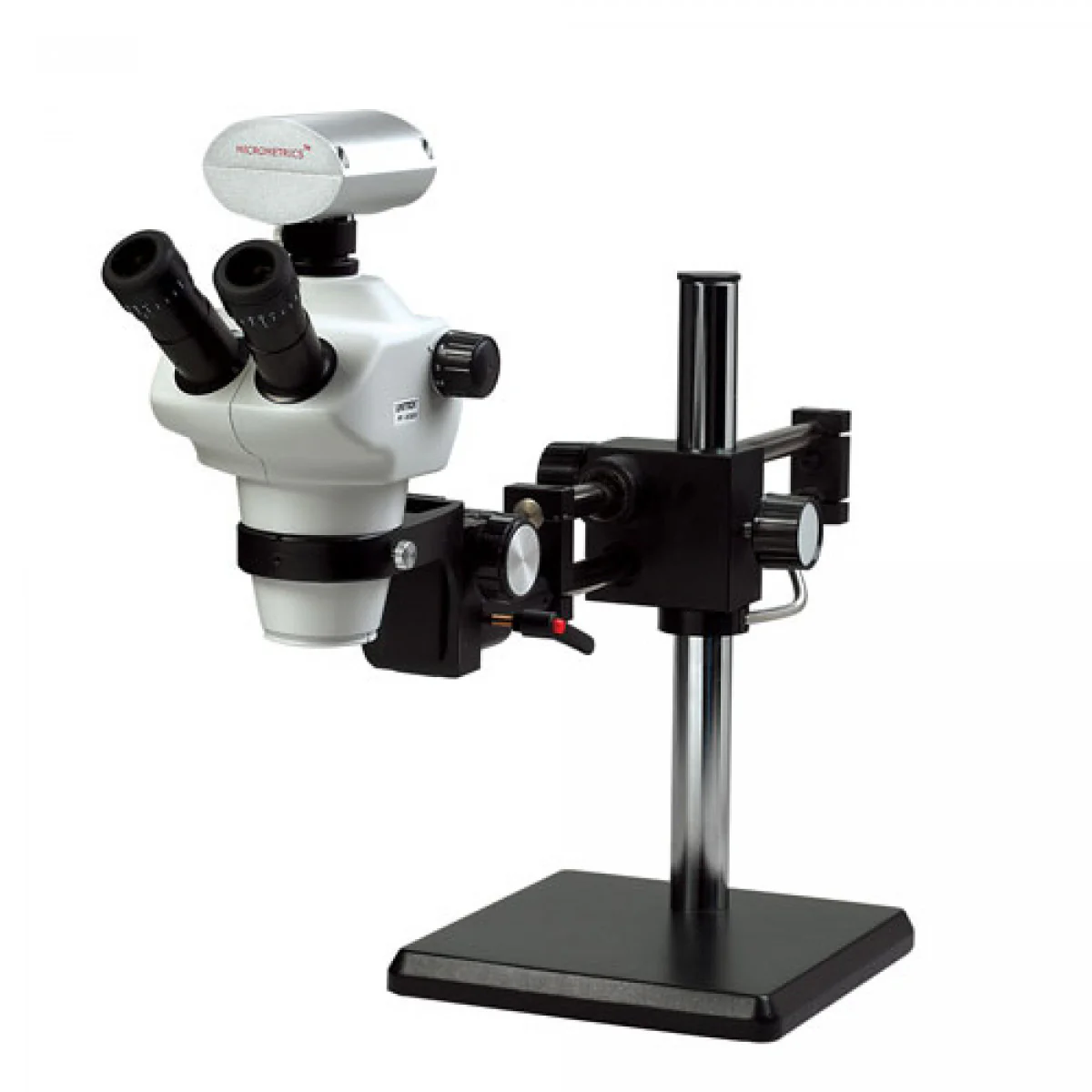

Unitron Z850 Zoom Stereo Microscope On Ball Bearing Boom Stand

The Unitron Z850 Series with a 6.3:1 zoom ratio is an ideal choice for industrial inspection, assembly, quality control, OEM integration, research and education applications requiring a higher magnification range.

The Z850 Series is a versatile, high performance, ergonomically designed zoom stereo microscope ruggedly built to withstand years of heavy usage.

Specifications

• Available with Binocular viewing head with 45° viewing angle, or Trinocular viewing head with 45° viewing angle
• Fixed glass lens shield
• Widefield 10x/22mm focusing eyepieces
• 0.8x – 5.0x zoom magnification range
• 6.3:1 Zoom ratio
• Magnification range 8x-50x (with 10x eyepieces), with click stops at 1x, 2x, 3x, 4x and 5x
• Interpupillary Distance Adjustment 52mm – 75mm
• Field of view 27.5mm - 4.4mm
• 115mm working distance
• Ball bearing boom stand with bonder arm focusing mount
• Base: 254mm x 254mm (10" x 10")
• Vertical Post: 394mm
• Horizontal Post: 585mm
• Weight: 42lbs
• Airtight and anti-mold design
• Note: Excelis™ HDS and Excelis HDS Lite cameras are not recommended for use with the Z850 series microscopes
• Shipping weight 50lbs.
